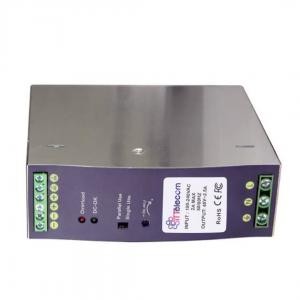

پاور 48V صنعتی دین ریل 240w

OUTPUT

• DC VOLTAGE: 48V
• RATED CURRENT: 2.5A
• CURRENT RANGE: 0 ~ 2.5A
• RATED POWER: 120W
• RIPPLE & NOISE (max.): 150mVp-p
• VOLTAGE ADJ. RANGE: 48 ~ 55V
• VOLTAGE TOLERANCE: ±1.0%
• LINE REGULATION: 0 .5%
• LOAD REGULATION: ±1.0%
• SETUP, RISE TIME:

1200ms, 60ms/230VAC

2500ms, 60ms/115VAC at full load

• HOLD UP TIME (Typ.):

16ms/230VAC

10ms/115VAC at full load

• VOLTAGE RANGE:

90 ~ 264VAC

127 ~ 370VDC

DC input operation possible by connecting AC/L (+), AC/N (-)

• FREQUENCY RANGE: 47 ~ 63Hz
• EFFICIENCY (Typ.): 89%
• AC CURRENT (Typ.): 2.25A/115VAC 1.3A/230VAC
• INRUSH CURRENT (Typ.): 20A/115VAC 35A/230VAC
• LEAKAGE CURRENT: <1mA / 240VAC

• OVERLOAD: 105 ~ 130% rated output power
• Protection type: Constant current limiting, recovers automatically after fault condition is removed.
• OVER VOLTAGE: 56 ~ 65V
• Protection type: Shut down o/p voltage, re-power on to recover
• OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

• WORKING TEMP.:  -20 ~ +70°C (Refer to "Derating Curve")
• WORKING HUMIDITY: 20 ~ 95% RH non-condensing
• STORAGE TEMP., HUMIDITY: -40 ~ +85°C, 10 ~ 95% RH
• TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 50°C)
• VIBRATION Component:

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes;

• Mounting: Compliance to IEC60068-2-6
